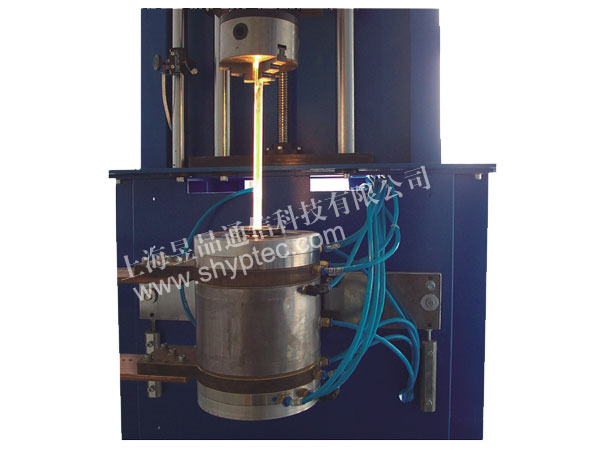

Optical fiber special drawing tower


Quartz series optical fiber drawing towers are used to manufacture polarization-maintain optical fiber, large diameter core optical fiber, metal-coated optical fiber, anti-radiation optical fiber, and also to manufacture quartz canaliculus, abnormity tube for photoelectrical parts. Drawing tower is consist of tower frame, perform feeding unit, graphite heating furnace, diameter gauge, auxiliary capstan, coating applicator, curing furnace, fiber tension gauge, capstan, take-up and electrical control system.

Technical Data

Height of tower :about 7~14m

Preform size: Φ50mm×1500mm

Temperature of heating furnace :≤2200℃

Speed of drawing :≤600m/min.

Diameter of product and accuracy :Φ1250-2000nm±60nm
